Usage-based regeneration
Automatic regeneration responds to actual usage to help maintain treated-water quality.
Pentair
Smart Cabinet Softener
Automatic Regeneration

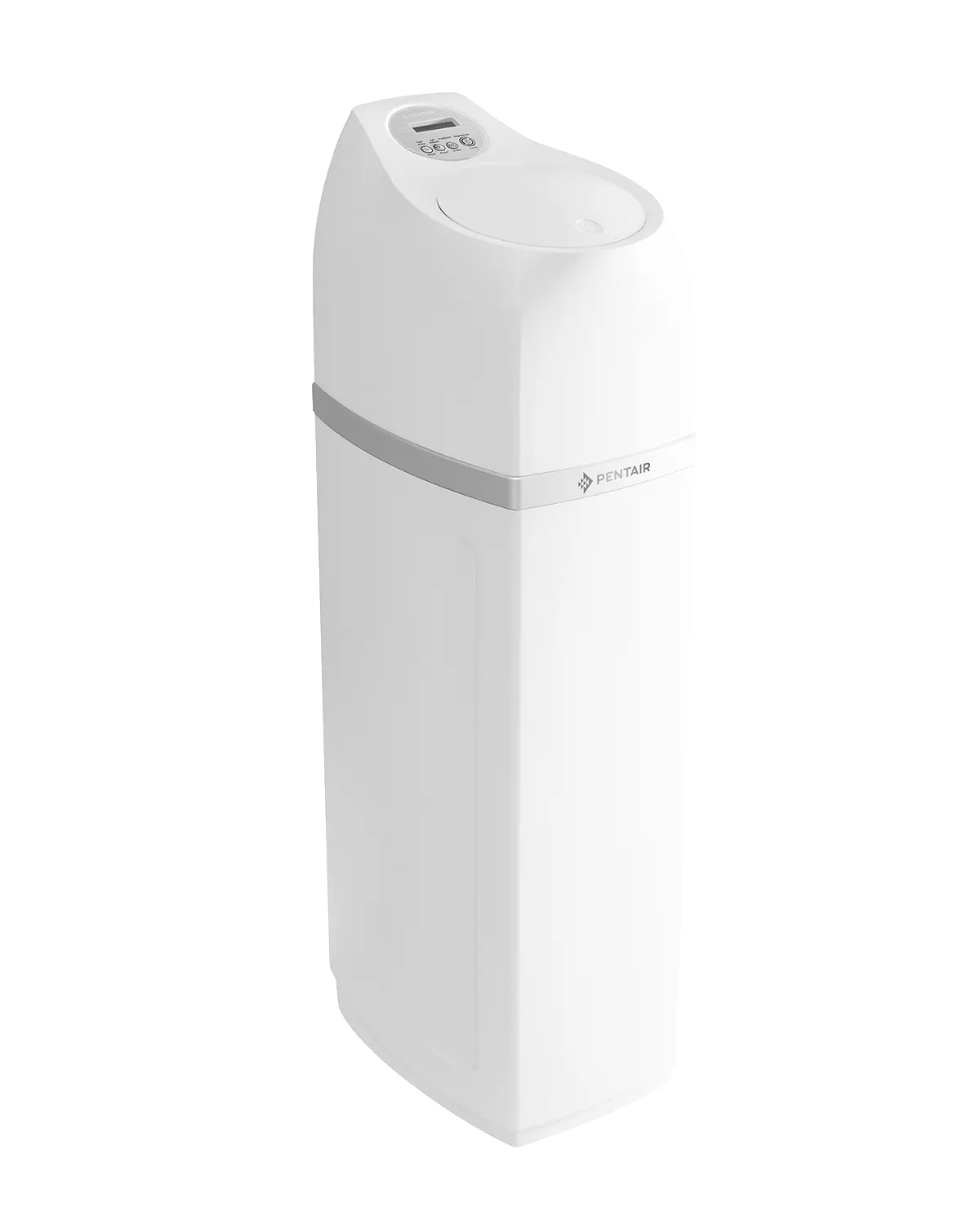

Pentair HydraSmart MIDI for smart cabinet softening for kitchens and light-commercial sites.
A compact automatic softener with 30 litres of cation resin, 2.0 m³/h flow and usage-based regeneration for hard-water equipment protection.
Site assessment
Installation guidance
Genuine cartridge support
AMC planning
Key Benefits
What this system helps you achieve
Eight-step cycle
A continuous eight-step regeneration sequence is designed to reduce residual regeneration chemicals.
Adjustable salt levels
Three selectable salt settings help balance regeneration performance and salt consumption.
Built-in bypass
The integrated bypass supports hardness blending, installation flexibility and servicing.
Application Fit
Is it suitable for your site?
Best for
- Hood-type dishwashers, glasswashers and commercial kitchen lines
- Light-commercial sites requiring up to 2.0 m³/h softened water
- Villas and facilities needing compact cabinet softening
- Hard-water equipment protection where automatic regeneration is preferred
Check before ordering
- Test raw-water hardness and confirm the required treated-water flow
- Operating pressure must remain within 0.14–0.35 MPa
- Allow space for the 532 × 314 × 1230 mm cabinet
- Provide a 1 inch BSP line, drain connection, salt access and electrical supply
| Product Name | Pentair HydraSmart MIDI (PWCE35P12) | Application | Automatic water softening for foodservice, light-commercial and selected residential applications |
|---|---|
| Service Flow Rate | 2.0 m³/h |
| Resin Volume | 30 litres of cation-exchange resin |
| Salt Capacity | 50 kg |
| Dimensions | 532 mm L × 314 mm W × 1230 mm H |
| Operating Pressure | 0.14–0.35 MPa / approximately 20–50 psi |
| Connections | 1 inch BSP inlet and outlet |
| Power Supply | 220 V / 50 Hz, approximately 6 W |
| Controller | Automatic usage-based regeneration control |
Trust Signals
Backed by brand credibility, certification and local support
Pentair water-treatment platform
HydraSmart is part of Pentair’s automatic water-softening family.
Usage-based regeneration
The controller regenerates according to actual water usage rather than a fixed schedule alone.
Warranty and service support
Warranty and service terms are provided through approved quotation and invoice policy.
Salt, resin and service planning
Ongoing performance depends on salt replenishment, correct settings and periodic servicing.
Everpure by Pentair systemsFoodservice water applicationsInstallation guidancePan-India service support
Why This Model
When HydraSmart MIDI makes sense
The mid-size HydraSmart cabinet model for sites that need more capacity than MINI without moving to the larger MAXI configuration.
1
Balanced 2.0 m³/h capacity
A practical fit for medium-demand kitchens, warewashing lines and light-commercial applications.
2
Integrated cabinet design
The resin vessel, salt storage and controller are contained in a compact finished enclosure.
3
Automatic demand-led operation
Usage-based control and adjustable salt levels support efficient regeneration planning.
Process
From water check to
From water check to
ongoing support
Test hardness
Equipment type, hardness report, operating hours and daily demand.
Size peak flow
Confirm equipment demand, simultaneous use and regeneration requirement.
Prepare utilities
Provide plumbing, drain, overflow, power and salt-refill access.
Maintain softening
Monitor salt, hardness leakage and service settings.
Customer Confidence
Built for commercial operations teams
Hardness reduction support
Softened utility water helps protect connected equipment from hardness scale.
Sizing-led recommendation
Model selection is based on hardness load, flow and daily consumption.
Automatic lifecycle control
The controller and salt settings support planned regeneration and upkeep.
Pricing depends on hardness, daily demand, plumbing, installation scope and service location. A water test and sizing review are required before quotation.
Share raw-water hardness, peak flow and daily consumption. Aquainwent can compare MIDI with HydraSmart MINI or MAXI.
Salt consumption depends on hardness, usage and the selected regeneration setting. The salt level should be checked as part of routine operation.
The installation requires compatible 1 inch plumbing, a drain and overflow route, electrical supply and clear access for salt filling and service.
No. Ion-exchange softening reduces hardness minerals but is not a reverse-osmosis process for dissolved-solids reduction.
Not sure if HydraSmart MIDI is the right softener size?
Share your hardness, peak flow, daily demand and site utilities. Aquainwent will compare MINI, MIDI, MAXI and commercial softener options.
