One system, multiple applications
Supports high-flow fountain, coffee and ice equipment from a coordinated filtration manifold.
Everpure by Pentair
High-Flow Combination
NSF/ANSI 42 & 53

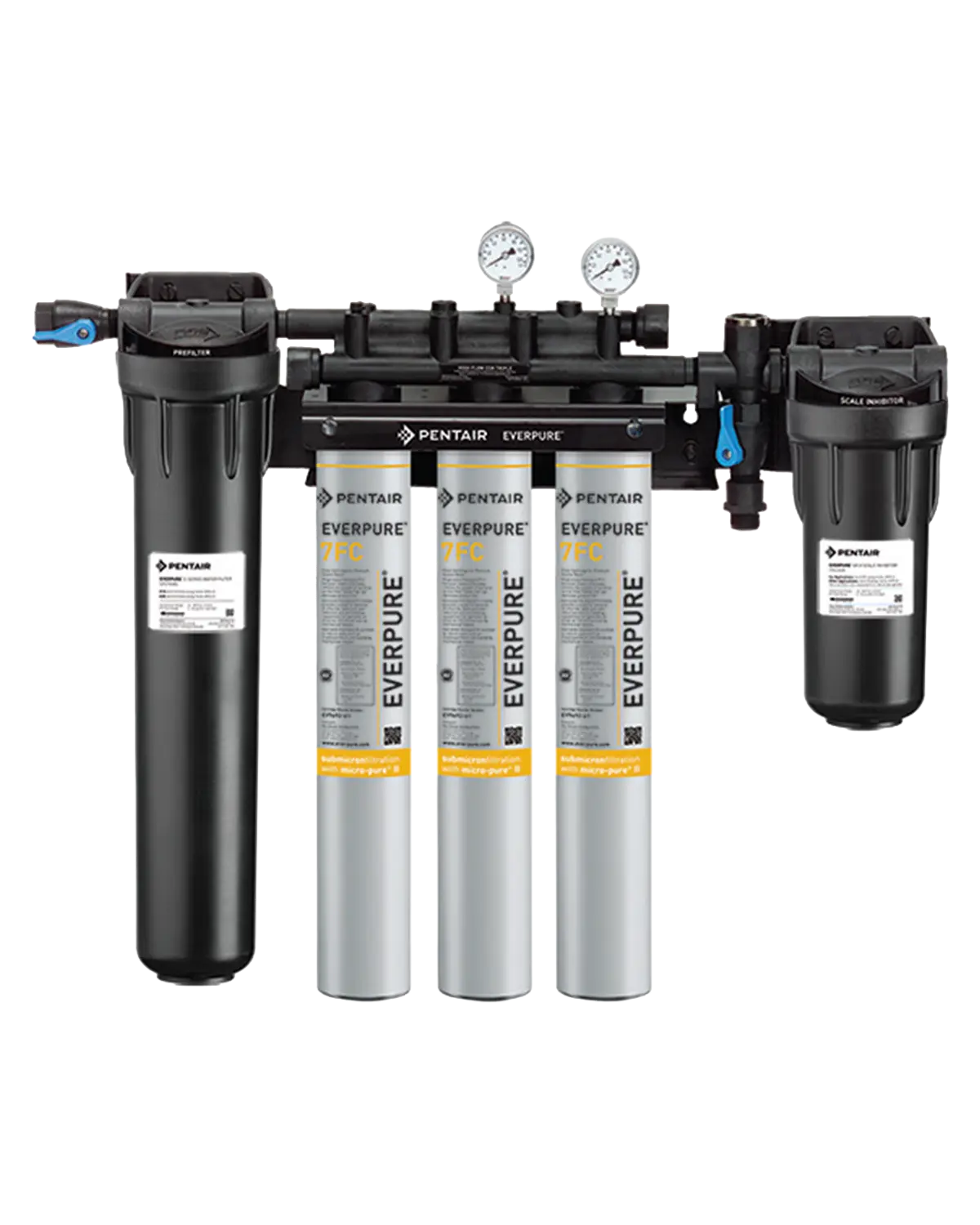

Everpure High Flow CSR Triple-7FC High-volume combination water for multiple equipment lines.
One system for fountain dispensers, coffee equipment and ice machines, combining a 20-inch prefilter, three 7FC cartridges and scale-control support for busy foodservice sites.
Site assessment
Installation guidance
Genuine cartridge support
AMC planning
Key Benefits
What this system helps you achieve
Fine-particle filtration
Fibredyne media supports chlorine taste and odour reduction and mechanically filters particles down to 0.2 micron.
Integrated prefiltration
The 20-inch prefilter captures larger particulate before it reaches the primary cartridges.
Scale-control support
A dedicated scale-inhibitor branch helps protect connected coffee and ice equipment.
Application Fit
Is it suitable for your site?
Best for
- High-volume QSR, hotel and foodservice beverage stations
- Sites feeding fountain, coffee and ice equipment from one filtration system
- Applications requiring up to 7.5 gpm service flow
- Operations seeking 75,000-gallon rated capacity
Check before ordering
- Provide a 3/4 inch water line and suitable mounting support
- Water pressure must remain within 10–125 psi, non-shock
- Feed-water temperature must remain within 2–38°C
- Allow space for the 64.9 × 76.2 × 17.1 cm system and cartridge changes
| Product Name | Everpure High Flow CSR Triple-7FC System (EV9329-73) | Application | High-flow combination filtration for fountain, coffee, espresso and ice equipment |
|---|---|
| Filtration Performance | 0.2 µm mechanical filtration performance |
| Rated Capacity | 75,000 gallons, approximately 283,906 litres |
| Service Flow Rate | Maximum 7.5 gpm, approximately 28.4 LPM |
| Dimensions | 25.59 in L × 30 in W × 6.75 in D, approximately 64.9 × 76.2 × 17.1 cm |
| Operating Pressure | 10–125 psi / 0.7–8.6 bar, non-shock |
| Operating Temperature | 2–38°C / 35–100°F |
| Connections | 3/4 inch FNPT inlet and outlets |
| Certifications | NSF/ANSI 42 & 53 system |
Trust Signals
Backed by brand credibility, certification and local support
Everpure by Pentair channel confidence
Aquainwent supports Everpure by Pentair system selection and supply across India.
NSF/ANSI 42 & 53
Use the exact performance claims applicable to the installed system and cartridges.
Warranty and service support
Warranty and service terms are provided through the approved quotation and invoice policy.
Three-stage cartridge planning
Plan 7FC, EC210 prefilter and SS-XL ScaleStick replacement around usage and water quality.
Everpure by Pentair systemsFoodservice water applicationsInstallation guidancePan-India service support
Why This Model
When High Flow CSR Triple-7FC makes sense
A centralized high-capacity system for sites that need one coordinated water treatment platform across multiple beverage and ice applications.
1
High-capacity combination duty
75,000-gallon capacity and up to 7.5 gpm suit demanding multi-equipment foodservice installations.
2
Separate treatment paths
The manifold supports fountain water before the scale feeder and coffee/ice water after scale-control treatment.
3
Integrated protection package
Prefiltration, primary filtration and scale inhibition are combined in one serviceable platform.
Process
From water check to
From water check to
ongoing support
Share requirement
List every fountain, coffee and ice machine connected to the water line.
Verify demand
Check simultaneous flow, capacity, pressure, temperature and mounting space.
Install correctly
Coordinate the 3/4 inch line, outlets and flushing access.
Maintain performance
Plan prefilter, 7FC and scale cartridge replacement.
Customer Confidence
Built for commercial operations teams
Multi-equipment consistency
One coordinated system helps standardise treated water across connected applications.
Engineering-led fitment
Selection is based on simultaneous demand, equipment mix and incoming water conditions.
Lifecycle support
Cartridge and service planning helps reduce unplanned filtration downtime.
Pricing depends on equipment count, installation scope, plumbing, cartridge package and service requirements. A fitment review is needed before quotation.
Yes, this system is designed for combination applications. Final layout must follow the correct manifold outlets and total simultaneous-flow requirement.
The system uses 7FC replacement cartridges, an EC210 prefilter and an SS-XL ScaleStick cartridge. Replacement timing depends on capacity, pressure and site water quality.
Confirm a 3/4 inch water line, 10–125 psi pressure, 2–38°C feed water, mounting strength and space for cartridge changes.
Use the exact NSF/ANSI claims in the applicable Pentair performance data sheet for the installed system and cartridges.
Not sure if High Flow CSR Triple-7FC fits your equipment mix?
Share your fountain, coffee and ice equipment, simultaneous demand and water quality. Aquainwent will verify system sizing and installation fit.
