Combination application
Supplies treated water for fountain, coffee and ice equipment through one coordinated manifold.
Everpure by Pentair
High-Flow Combination
NSF/ANSI 42 & 53

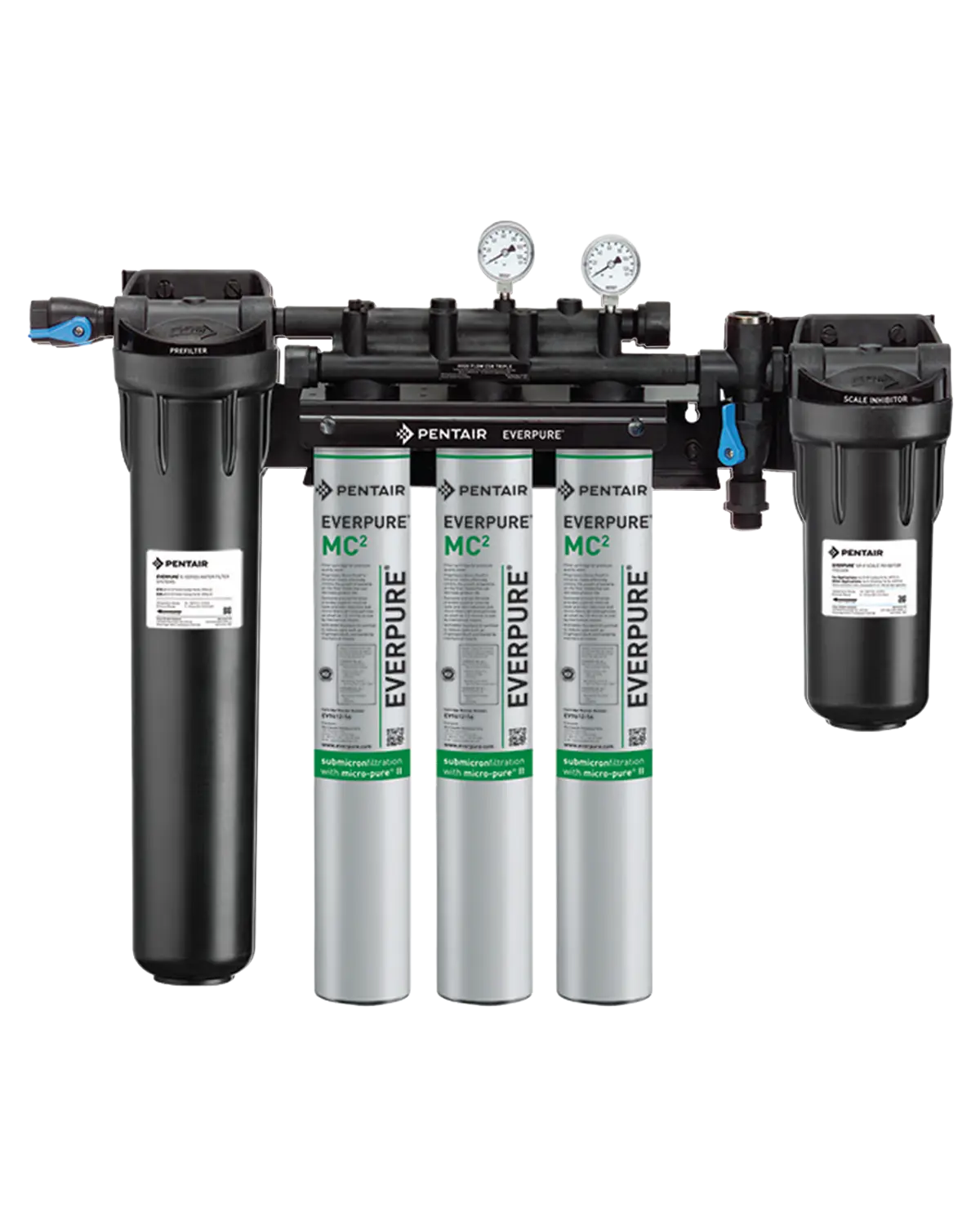

EverpureHigh Flow CSR Triple-MC2 Combination filtration for busy beverage and ice stations.
A coordinated system with a 20-inch prefilter, three MC2 cartridges and scale-control support for fountain dispensers, coffee equipment and ice machines.
Site assessment
Installation guidance
Genuine cartridge support
AMC planning
Key Benefits
What this system helps you achieve
Micro-Pure II filtration
Supports chlorine taste and odour reduction and mechanically filters particles down to 0.2 micron.
20-inch prefilter
Captures larger dirt particles before they reach the three MC2 cartridges.
Scale-control branch
An integrated feeder supports scale protection for connected coffee and ice equipment.
Application Fit
Is it suitable for your site?
Best for
- Foodservice sites with fountain, coffee and ice equipment
- Applications requiring up to 5 gpm simultaneous service flow
- Operations seeking 27,000-gallon rated capacity
- Centralised treatment with separate fountain and coffee/ice outlets
Check before ordering
- Provide a 3/4 inch water line and adequate mounting support
- Water pressure must remain within 10–125 psi, non-shock
- Feed-water temperature must remain within 2–38°C
- Allow space for the 64.9 × 76.2 × 17.1 cm assembly and cartridge changes
| Product Name | Everpure High Flow CSR Triple-7FC System (EV9329-73) | Application | Combination filtration for fountain, coffee, espresso and ice equipment |
|---|---|
| Filtration Rating | 0.2 µm mechanical filtration |
| Rated Capacity | 27,000 gallons, approximately 102,206 litres |
| Service Flow Rate | Maximum 5 gpm, approximately 18.9 LPM |
| Dimensions | 25.59 in L × 30 in W × 6.74 in D, approximately 64.9 × 76.2 × 17.1 cm |
| Operating Pressure | 10–125 psi / 0.7–8.6 bar, non-shock |
| Operating Temperature | 2–38°C / 35–100°F |
| Connections | 3/4 inch FNPT inlet and outlets |
| Operating Weight | Approximately 22.2 kg |
Trust Signals
Backed by brand credibility, certification and local support
Everpure by Pentair channel confidence
Aquainwent supports Everpure by Pentair system selection and supply across India.
NSF/ANSI 42 & 53
MC2 filtration supports the certified claims applicable to the system and cartridges.
Warranty and service support
Warranty and service terms are provided through the approved quotation and invoice policy.
MC2 cartridge planning
Plan MC2, EC210 prefilter and SS-IMF replacement around usage, pressure and water quality.
Everpure by Pentair systemsFoodservice water applicationsInstallation guidancePan-India service support
Why This Model
When High Flow CSR Triple-MC2 makes sense
A centralized combination system for sites that need up to 5 gpm across fountain, coffee and ice applications.
1
Balanced combination capacity
27,000-gallon capacity and 5 gpm service flow suit many multi-equipment beverage stations.
2
Application-specific outlets
Fountain equipment and coffee/ice equipment can receive the treatment path suited to each application.
3
Serviceable integrated platform
A prefilter, three MC2 cartridges and scale feeder are organised in one manifold system.
Process
From water check to
From water check to
ongoing support
Share equipment list
Provide fountain, coffee and ice equipment models and usage.
Verify demand
Check simultaneous flow, capacity, pressure and available wall space.
Install correctly
Coordinate the 3/4 inch line, manifold outlets and flushing access.
Plan maintenance
Schedule prefilter, MC2 and scale cartridge replacement.
Customer Confidence
Built for commercial operations teams
Consistent beverage water
Supports coordinated treated water across multiple connected applications.
Fitment-led selection
Sizing is based on equipment mix, simultaneous demand and incoming water.
Planned service support
Replacement planning helps maintain flow and filtration performance.
Pricing depends on the equipment mix, installation scope, plumbing and cartridge package. Aquainwent verifies fitment before issuing a quotation.
Yes. It is intended for combination fountain, coffee and ice applications, provided total simultaneous demand remains within system limits.
The system uses three MC2 cartridges, an EC210 prefilter and an SS-IMF scale cartridge. Replacement timing depends on use and incoming water quality.
Confirm a 3/4 inch line, 10–125 psi pressure, 2–38°C water, mounting strength and sufficient cartridge-change clearance.
Refer to the Pentair performance data sheet for the exact NSF/ANSI reduction claims applicable to the installed system.
Not sure if High Flow CSR Triple-MC2 fits your equipment mix?
Share your fountain, coffee and ice equipment, simultaneous demand and water quality. Aquainwent will verify the correct system and installation layout.
